Consisting of :
“GEA-CFS” former
Type VM 400 HSE
- all stainless steel
- die width 400 mm
- usable die surface 370 x 130 mm
- maximum volume per stroke ± 1,5 kg
- speed up to ± 55 strokes / minute
- power 7,5 kW
- air pressure 6 bar
- water pressure max 4 bar
- air consumption ± 300 L / min.
- hopper capacity 250L
- weight 1200 kg
- 3x400v 50hz
- PLC control
- variable speed
- mobile
+

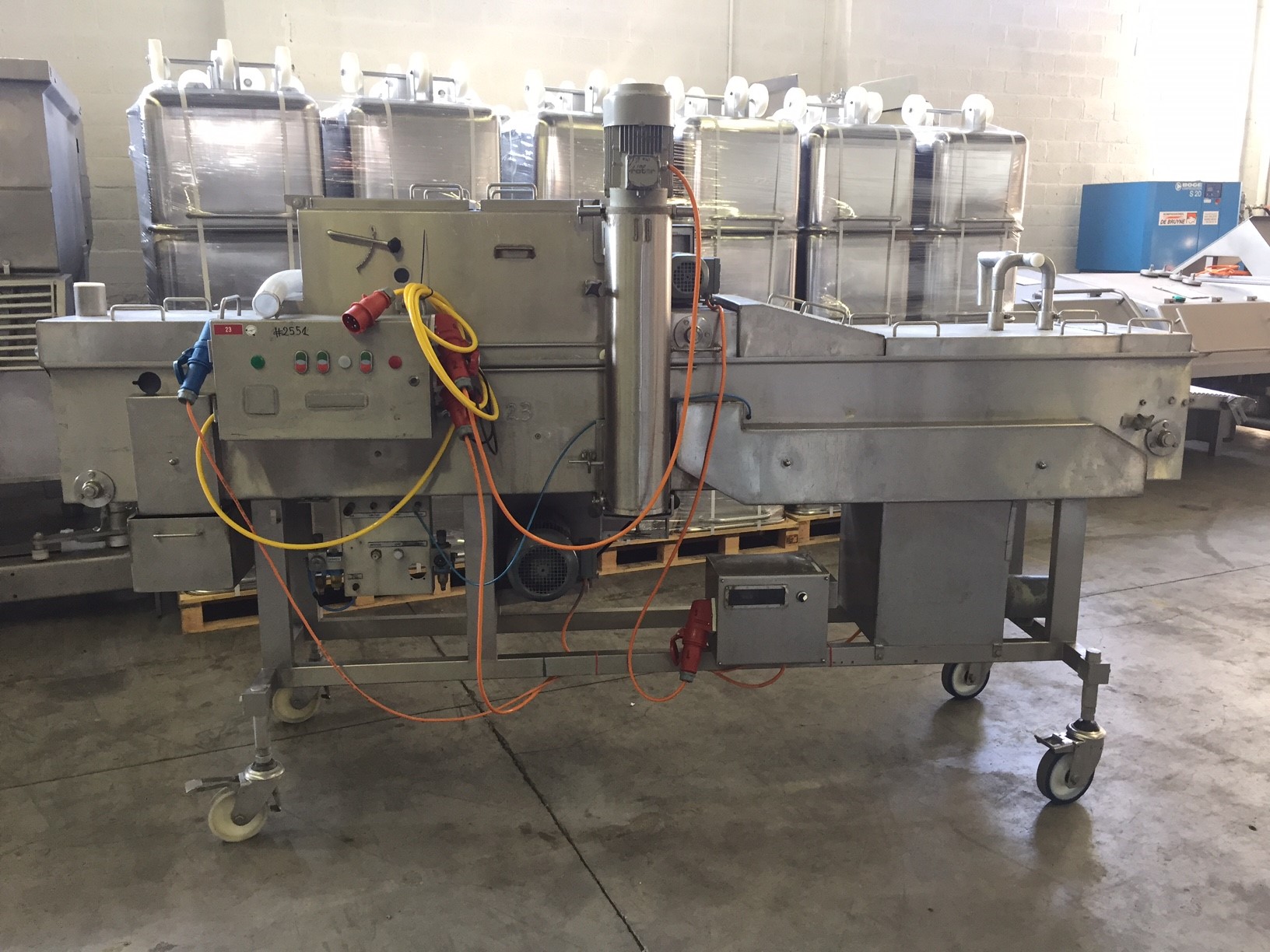

“GEA-CFS” pre-duster
Type PRM 400 M
- all stainless steel
- mobile
- belt width 400 mm
- adjustable speed
- with air knife
- with outfeed conveyor
- dimensions (l x w x h) : ± 3.300 x 950 x 2.000 mm
+

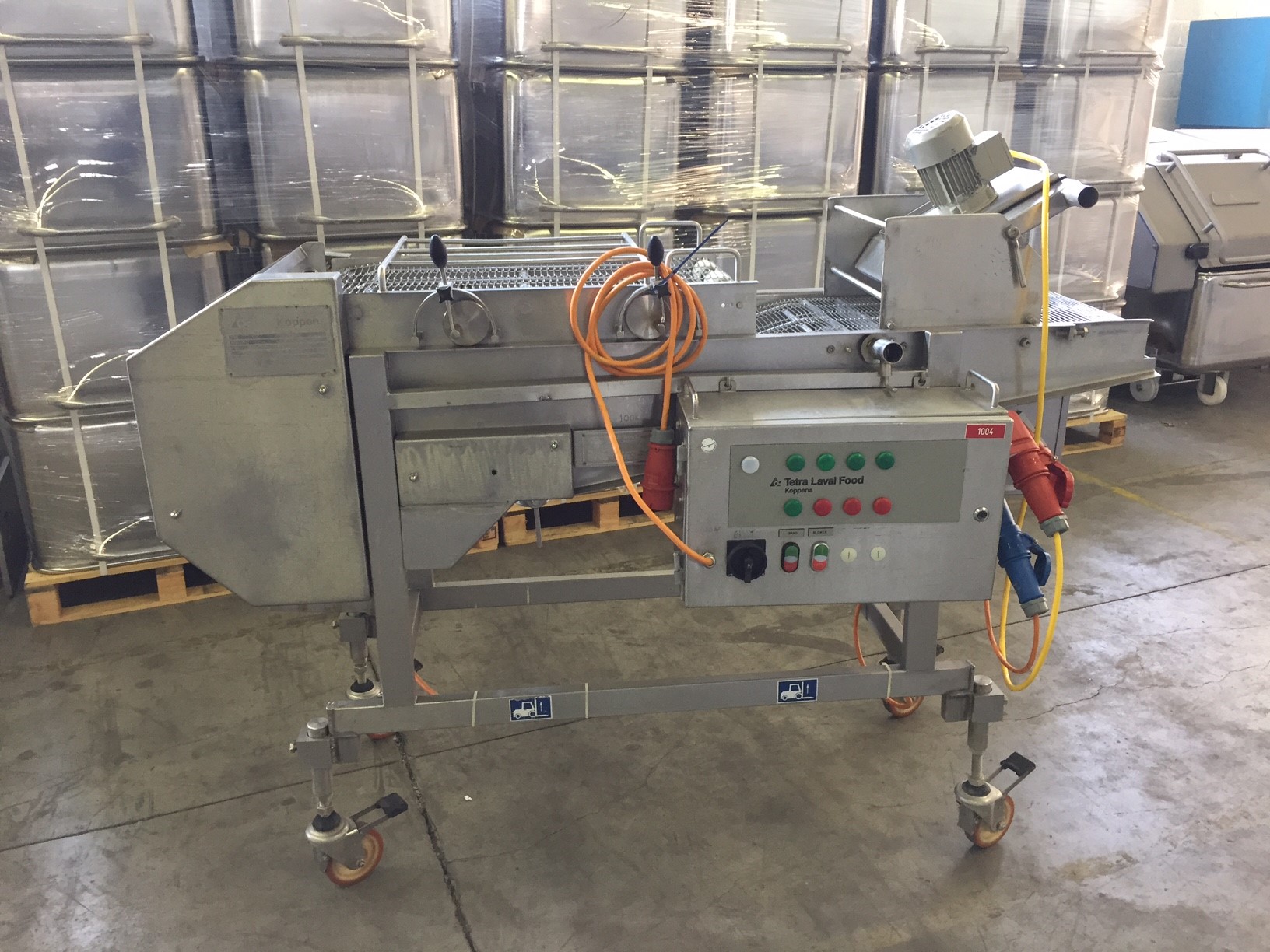

Tempura Dipper “GEA-CFS”
Type Tempudipper TD 400
- belt width 400 mm
- all stainless steel
- adjustable speed
- with lower and upper belt
- adjustable upper belt
- with outfeed belt
- dimensions (l x w x h) : ± 2.500 x 900 x 1.400 mm mobile
- 0,45 kW
+

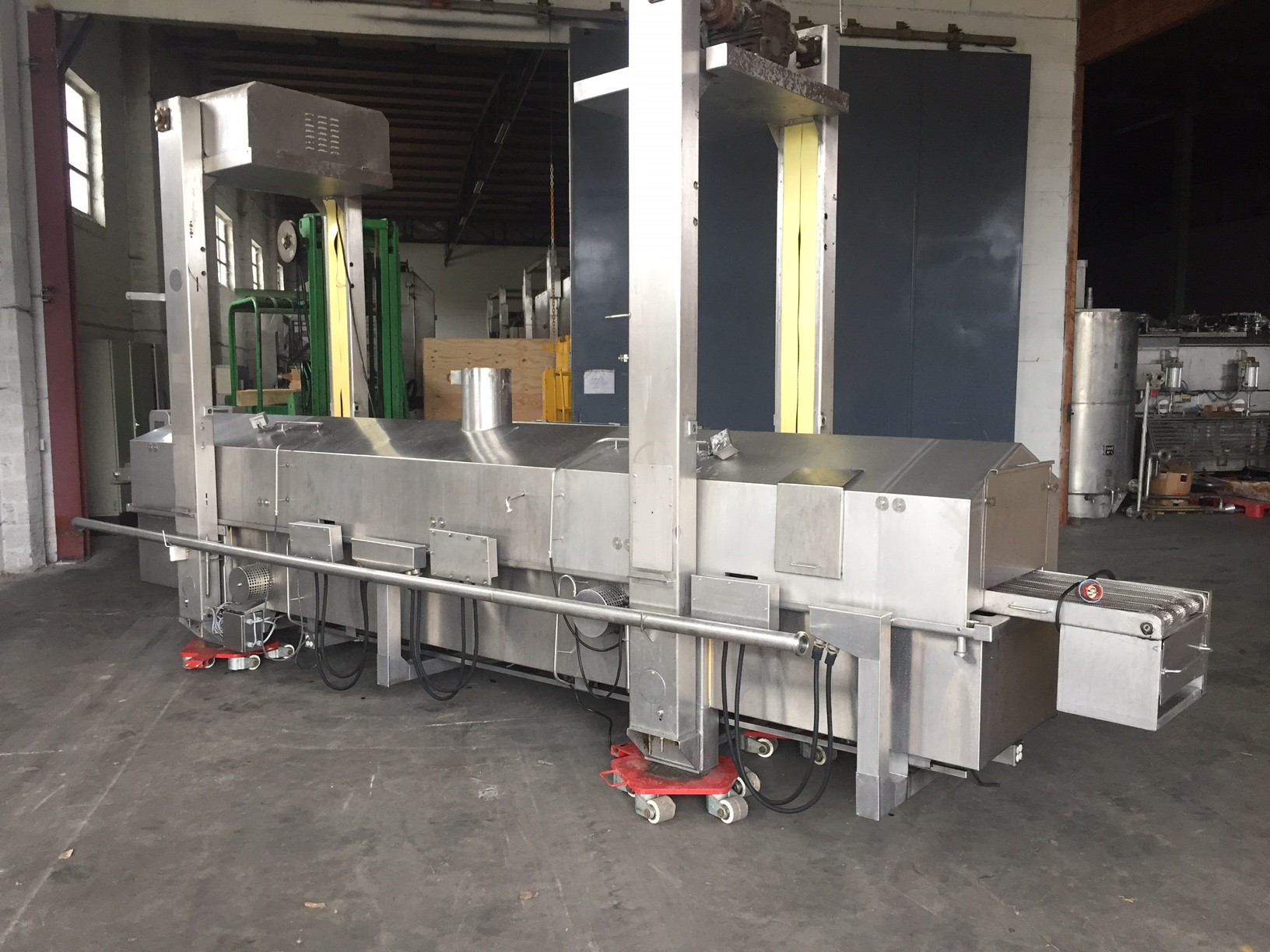

“GEA-CFS” fryer
Type BRN 3000/500
- all stainless steel
- electrically heated
- 84 kW
- frying length 3.000 mm
- belt width 500 mm
- mechanical lid
- oil level control
- teflon-infeed
- extra infeed conveyor 5 mm
- extra outfeed conveyor 5 mm
- oil circulation pump
- filter
- sediment removal system
- electrical hoists
- fire protection
- total length ± 6.650 mm
- total width ± 1.500 mm
- total height ± 3.200 mm
